440,000.00 ฿

The CHEFTOP MIND.Maps™ PLUS Gas 10 GN 1/1 is a technologically advanced combi oven for gastronomy cooking processes (dehydrating, steaming, low temperature cooking, sous vide cooking, roasting, grilling, pan frying, regeneration and plate regeneration) and for fresh or frozen baking thanks to Unox Intensive Cooking and Intelligence Performance technologies which guarantee perfect results and repeatability for any load size.

Automatic management of cooking processes (CHEFUNOX) for perfect results even without trained staff+

*All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.


Model: XEVC-1011-GPRM
Type: UNOX CHEFTOP MIND.Maps™ PLUS Gas 10 GN 1/1

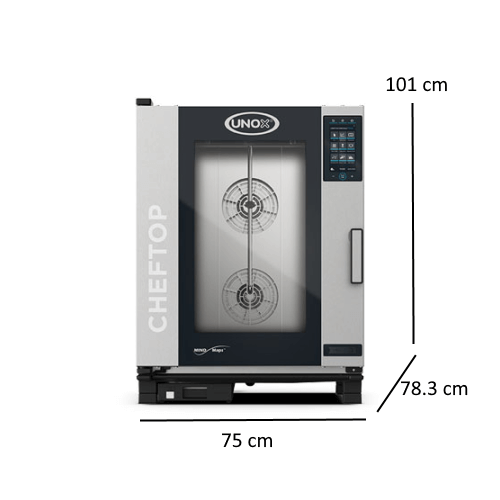

Measurement: 75 x 78.3 x 101 cm
Pan Spacing: 67 mm
Capacity: 10 GN 1/1 PLUS
Power: Gas 17Kw>22Kw
Electrical Power: 220-240 V.50-60Hz, 1Kw
Max Amp draw: 4A
Required breaker Size:  16A
Controls: 9.5″ Touch control panel
Weight (net): 117 kg
Water connection: 3/4″ female NPT water inlet
Water pressure: Drinking water inlet: 3/4″ NPT*, line pressure:

22 to 87 psi; 1.5 to 6 Bar (29 psi; 2 Bar


Delivery: Depending on stock status

Key features

  • ROTOR.Klean™: automatic washing system
  • Automatic special washing behind the fan guard
  • Cooking chamber in high-resistance AISI 304 stainless steel with rounded edges
  • Triple glass
  • Cooking chamber lighting through LED lights embedded in the door
  • Tray supports with anti-tip system
  • Drip collection system integrated in the door which works even when the door is open
  • 4-speed fan system and high-performance heating elements
  • Integrated DET&Rinse™ detergent container
  • Integrated Wi-Fi
  • Wi-Fi / USB data: download/upload HACCP data
  • Wi-Fi / USB data: download/upload programs
