250,000.00 ฿

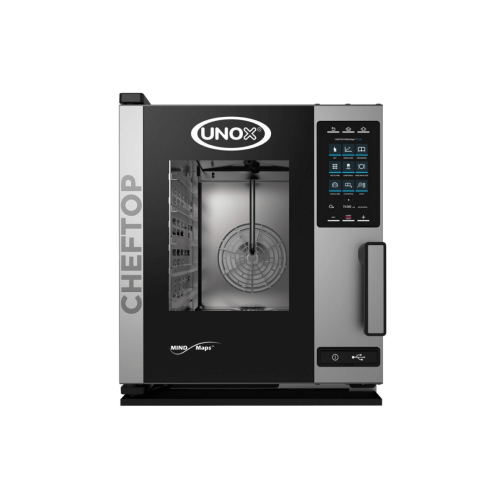

The CHEFTOP MIND.Maps™ PLUS COMPACT Electric 5 GN 1/1 is a technologically advanced combi oven for gastronomy cooking

processes (dehydrating, steaming, low temperature cooking, sous vide cooking, roasting, grilling, pan frying, regeneration and plate regeneration) and for fresh or frozen baking thanks to Unox

Intensive Cooking and Intelligence Performance technologies which guarantee perfect results and repeatability for any load size.

Automatic management of cooking processes (CHEFUNOX) for perfect results even without trained staff.

*All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.


Model: XECC-0513-EPRM
Type: CHEFTOP MIND.Maps™ PLUS COMPACT Electric 5 GN 1/1

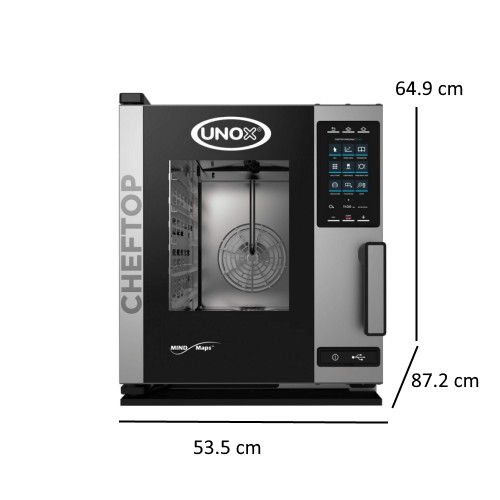

Measurement: 53.5 x 87.2 x 64.9 cm
Pan Spacing: 67 mm
Capacity: 5 trays GN 1/1
Power: 380-415, V 50/60 Hz, ~3PH+N+PE 9.3Kw
Max Amp draw: 15A
Required breaker Size:  20A
Controls: 9.5″ Touch control panel
Weight (net): 68 kg
Water connection: 3/4″ female NPT water inlet
Water pressure: Drinking water inlet: 3/4″ NPT*, line pressure:

22 to 87 psi; 1.5 to 6 Bar (29 psi; 2 Bar


Delivery: Depending on stock status


Key features

  • ROTOR.Klean™: automatic washing system
  • Automatic special washing behind the fan guard
  • Cooking chamber in high-resistance AISI 304 stainless steel

with rounded edges

  • Triple glass
  • Cooking chamber lighting through LED lights embedded in the door
  • Tray supports with anti-tip system
  • Drip collection system integrated in the door which works even when the door is open
  • 4-speed fan system and high-performance heating elements
  • Integrated DET&Rinse™ detergent container
  • Integrated Wi-Fi
  • Wi-Fi / USB data: download/upload HACCP data
  • Wi-Fi / USB data: download/upload programs
