950,000.00 ฿

The CHEFTOP MIND.Maps™ BIG PLUS Electric 20 GN 2/1 is a technologically advanced combi oven for gastronomy cooking processes (dehydrating, steaming, low temperature cooking, sous vide cooking, roasting, grilling, pan frying, regeneration and plate regeneration) and for fresh or frozen baking thanks to Unox Intensive Cooking and Intelligence Performance technologies which guarantee perfect results and repeatability for any load size.

Automatic management of cooking processes (CHEFUNOX) for perfect results even without trained staff+

*All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.


Model: XEVL-2021-YPRS
Type: UNOX CHEFTOP MIND.Maps™ BIG PLUS Electric 20 GN 2/1

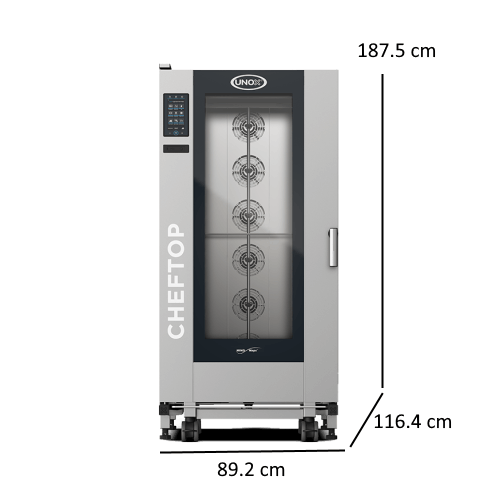

Measurement: 89.2 x 116.4 x 187.5 cm
Pan Spacing: 67 mm
Capacity: 20 Trays GN 2/1
Power: 380-415, V 50/60 Hz, ~3PH+N+PE 65Kw
Max Amp draw: 96.5A
Required breaker Size:  100A
Controls: 9.5″ Touch control panel
Weight (net): 339 kg
Water connection: 3/4″ female NPT water inlet
Water pressure: Drinking water inlet: 3/4″ NPT*, line pressure:

22 to 87 psi; 1.5 to 6 Bar (29 psi; 2 Bar


Delivery: Depending on stock status

Key features

  • ROTOR.Klean™: automatic washing system
  • Automatic special washing behind the fan guard
  • Moulded cooking chamber made of AISI 316 L stainless steel
  • Triple glass
  • Cooking chamber lighting through LED lights embedded in the door
  • Tray supports with anti-tip system
  • Drip collection system integrated in the door which works even when the door is open
  • 6 motors with multiple fan system with reverse gear and high power intensity rectilinear heating elements
  • Integrated DET&Rinse™ detergent container
  • Integrated Wi-Fi
  • Wi-Fi / USB data: download/upload HACCP data

• Wi-Fi / USB data: download/upload programs
