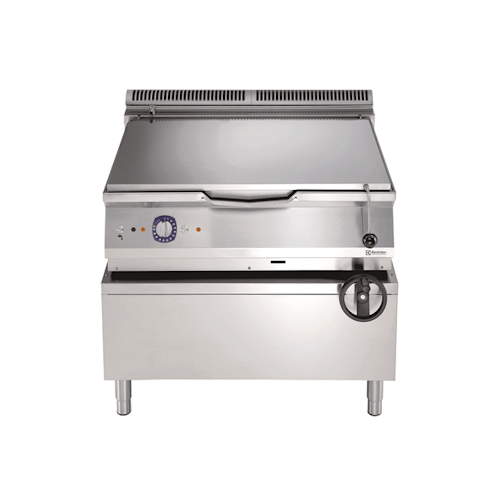

Modular Cooking Range Line 900XP Gas Bratt Pan 80lt with Duomat bottom

320,000.00 ฿

Introducing the pinnacle of professional cooking innovation: Electrolux Professional’s Modular Cooking Range Line 900XP Gas Bratt Pan 80lt with Duomat bottom. Crafted to elevate culinary excellence, this marvel is designed for both natural gas and LPG, ensuring versatility in any kitchen.

Equipped with burners in AISI 441 featuring a flame failure device, it guarantees safety and efficiency. The Duomat cooking surface offers a spectrum of culinary techniques from roasting to braising, while the manual tilting mechanism simplifies pan emptying.

Experience precise temperature control with an adjustable thermostat and energy regulator, ensuring optimal cooking conditions. With IPX5 water resistance certification and smooth, large surfaces for easy cleaning, maintenance is a breeze.

Constructed with premium materials including stainless steel with Scotch Brite finishing, it exudes durability and hygiene. Plus, its innovative design ensures seamless integration between units. Elevate your kitchen’s performance with Electrolux Professional.


*All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.


Model: EL-391136
Type: Modular Cooking Range Line 900XP Gas Bratt Pan 80lt with Duomat bottom
Power: Gas Power 21 Kw, Electric 220-230 V/1 ph/50 Hz 0.1 kW
Cooking surface: 56.5 x 68 x 13 cm


Well Capacity: 80 Liters
Work temperature; 80 > 300 °C

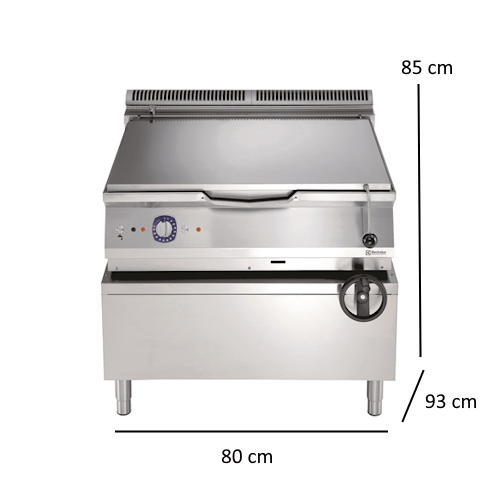

Size: 80 x 93 x 85 cm
Packing size: 86 x 102 x 108 cm
Weight: 150 Kg
Warranty: 365 days
Delivery: 45-60  Days




  • Bratt pan ideal for sautéing, poaching, steaming, boiling, stewing and damp cooking.
  • Duomat cooking surface allows to perform wet and dry cooking alternatively.
  • Double–skin well and lid to reduce heat dispersion.
  • IPX5 water resistance certification.
  • Actual cooking temperature setting through adjustable thermostat.
  • Energy input controlled by energy regulator.
  • Manual tilting mechanism to facilitate pan emptying.
  • Smooth large surfaces, easy access forcleaning.
  • The special design of the control knob system guarantees against water infiltration.
  • Working temperature can be set from 80 ° C to 300 °C.


  • Cooking surface with Duomat bottom: a 10 mm-thick alloy obtained from the combination of 2 different stainless steels for better thermal stability and corrosion resistance.
  • All pan internal surfaces round and polished for better hygiene.
  • All exterior panels in Stainless Steel with Scotch Brite finishing.
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
  • Burners in AISI 441 against corrosion and thanks to a high strenght yield, are resistant to high temperature.
  • Usable capacity of the well 66 liters.
