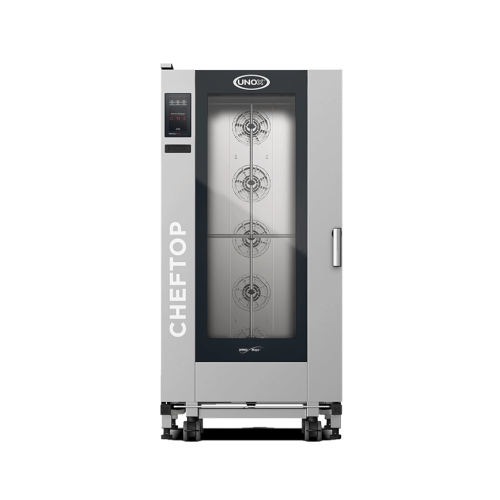

f. UNOX CHEFTOP MIND.Maps BIG ONE Electric 20 GN 1/1

527,000.00 ฿

The UNOX CHEFTOP MIND.Maps™ BIG ONE Electric 20 GN 1/1 is a Technologically advanced combi oven able to handle different cooking processes (dehydrating, steaming, low temperature cooking, sous vide cooking, roasting, grilling, pan frying, regeneration regeneration and plate regeneration) and baking process (fresh and frozen bakery and pastry). Thanks to Unox Intensive Cooking technology that guarantees perfect results for each process.

CHEFTOP MIND.Maps™ ONE is the professional combi oven that allows you to obtain concrete cooking performances in a simple and intuitive way. Your experience, combined with manual functions and essential technologies, becomes fundamental. Perfectly essential, simply effective.

*All Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.


Model: XEVL-2011-E1RS
Type: UNOX CHEFTOP MIND.Maps™ BIG ONE Electric 20 GN 1/1

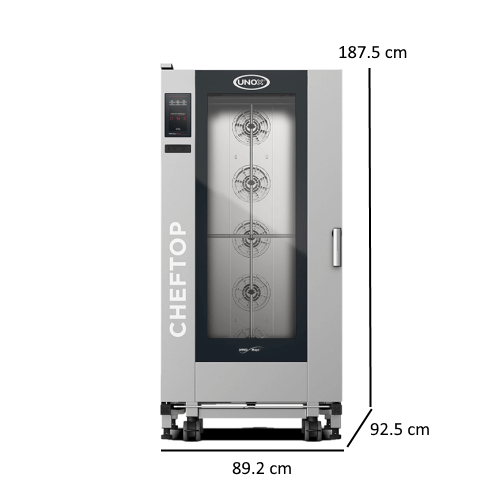

Measurement: 89.2 x 92.5 x 187.5 cm
Pan Spacing: 67 mm
Capacity: 20 trays GN 1/1
Power: 380-415, V 50/60 Hz, ~3PH+N+PE 35.5 Kw
Max Amp draw: 57 A
Required breaker Size:  63 A
Controls: 9.5″ Touch control panel
Weight (net): 262 kg
Water connection: 3/4″ female NPT water inlet
Water pressure: Drinking water inlet: 3/4″ NPT*, line pressure:

22 to 87 psi; 1.5 to 6 Bar (29 psi; 2 Bar


Delivery: Depending on stock status


Key features

  • ROTOR.Klean™: automatic washing system
  • Cooking chamber in high-resistance AISI 304 stainless steel with rounded edges
  • Double glass
  • Cooking chamber lighting through LED lights embedded in the door
  • Tray supports with anti-tip system
  • Drip collection system integrated in the door which works even when the door is open
  • 4-speed fan system and high-performance heating elements
  • Integrated DET&Rinse™ detergent container
  • Wi-Fi / USB data: download/upload HACCP data
  • Wi-Fi / USB data: download/upload programs
